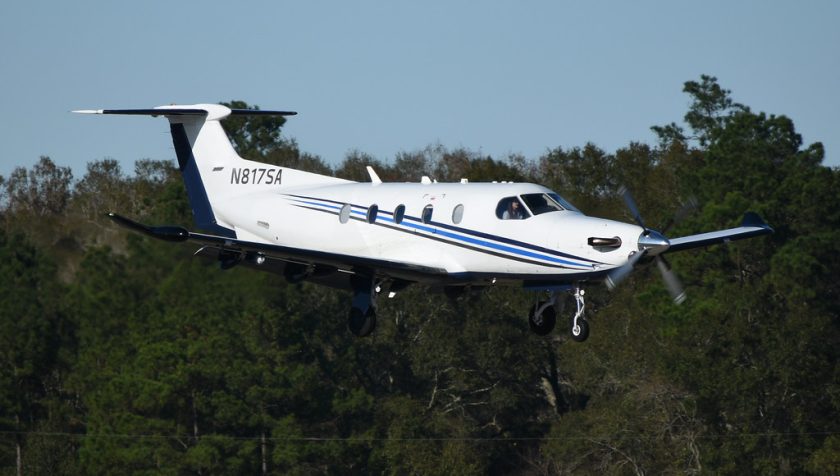

2014 Pilatus PC12NG N817SA

Reg #N817SA

Serial #1504

TTAF9,2392.8 Hrs.

Landings4,951

Listing Type:

For Sale

Aircraft Type:

Turboprop

Location:

United States

Highlights

PC12NG GENERAL DATA
Cabin Height – 4 feet 10 inches
Cabin Width: Max / at Floor Level – 5 feet Baggage – 40 Cu. Ft. / 1,000 Lbs.
Take Off Distance at Sea Level – 1,475 feet
Landing Distance – 2,169 feet Maximum Altitude – 30,000 feet Range with 4 Pax – 1,600 NM
Max Range – 1,800 NM
Long Range Cruise Speed – 209 knots High Speed Cruise Speed – 270 knots

CAPABILITIES:
RVSM
XM Weather
77.1 Cubic foot Oxygen System
WAAS/LPV
TCAS 7.1
Mode S Transponder
ADS-B Out

WEIGHT:
MAX RAMP WEIGHT: 10,495 Lbs.
MAX TAKE-OFF WEIGHT: 10,450 Lbs.
MAX LANDING WEIGHT: 9,921 Lbs.
MAX ZERO FUEL: 9,039 Lbs.
MAX USABLE FUEL: 2,704 Lbs.

AIRCRAFT BROCHURE

Enter your email below to view now

Details

Airframe & Power Systems

Airframe Notes

US Registered ESP Gold CASP FAR 135
CAMP MX
6 + 2 Seating

Engine ProgramESP GOLD

Engine/Prop 1 MakePratt & Whitney

Engine/Prop 1 ModelPT6A-67P

Engine/Prop 1 Serial #PCE-RY0437

Engine/Prop 1 Time4,105.3

Engine/Prop 1 Cycles4,951

Engine/Prop 1 TSOH523.8

Maintenance Condition

Maintenance Notes

Enrolled in CAMP Maintenance Tracking Program
Original C of A Issued: November 12, 2014
Operated Part 135
Airframe maintained per Chapter 5
Engines are maintained per Pratt & Whitney Schedule

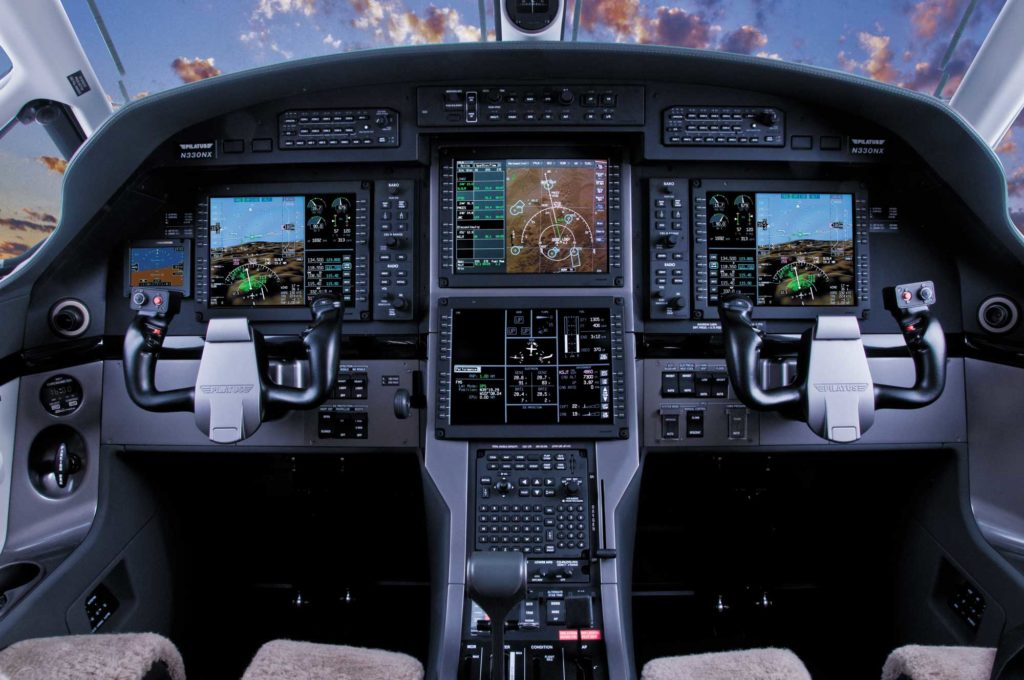

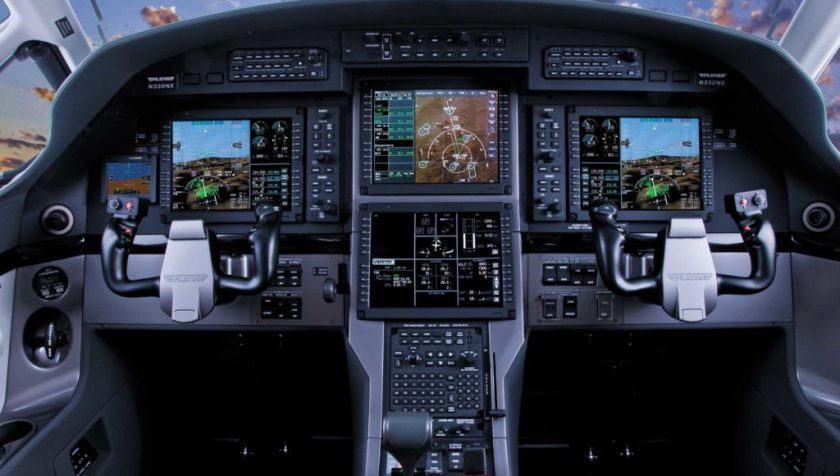

Avionics

Honeywell Primus APEX
A/P / IFCS (Autopilot / Integrated Flight Control System)
Single Honeywell KMC-9200 ADF (Automatic Direction Finder)
Single Honeywell KTR 2280 ADAHRS (Air Data and Heading Reference System)
Single Honeywell KG-7200 ADARHS AUDIO PANEL
Dual Honeywell KMA-29 CCP (Cursor Control Panel)
Single Honeywell KMC-2220 CDU (Control Display Unit)
Dual Honeywell KMC-2210 CVR/FDR (Cockpit Voice Recorder/Flight Data Recorder)
Single Honeywell LDR Cockpit Voice Flight Data Recorder DME (Distance Measuring Equipment)
Single Honeywell KN-63 DU (Display Unit)
Quad Honeywell KDU-1080 ESIS (Electronic Standby Instrument System) Single L3 ESI-1000 ELT (Emergency Locator Beacon)
Single Kannad 406AF w/Nav Interface GPS (Global Positioning System) Dual KGS 200 GPS Receiver (WAAS) LIGHTNING SENSOR
Single L3 WX-500 Stormscope MFD (Multi-Function Display)
Single Honeywell KDU-1080 MMDR (Multi-Mode Digital Radio)
Dual Honeywell KTR 2280 NAV (Navigation Radio)
Dual Honeywell KTR-2280 RADAR
Single Honeywell RDR-2000 RADAR ALT (Radar Altimeter)
Single Honeywell KRA-405B SVS (Synthetic Vision System)
Single Honeywell Smartview TAWS (Terrain Awareness and Warning System)
Single Honeywell KMH-920 Class B TCAS (Traffic Collision Avoidance System)
Single Honeywell KMH-920 TCAS I VHF COMM (Very High Frequency Communications)
Dual Honeywell KTR-2280 XM WX (XM Satellite Weather)
Single Honeywell XMD-157 XPNDR (Transponder)
Dual Honeywell KXP-2290A Mode S

Additional Equipment

COMMUNICATIONS
Aircell Iridium System
Air Text

CONVENIENCES
LED Cabin Lighting
Full enclosed lavatory
Rear Cargo Door
Airstair Entry for ease of entry and egress

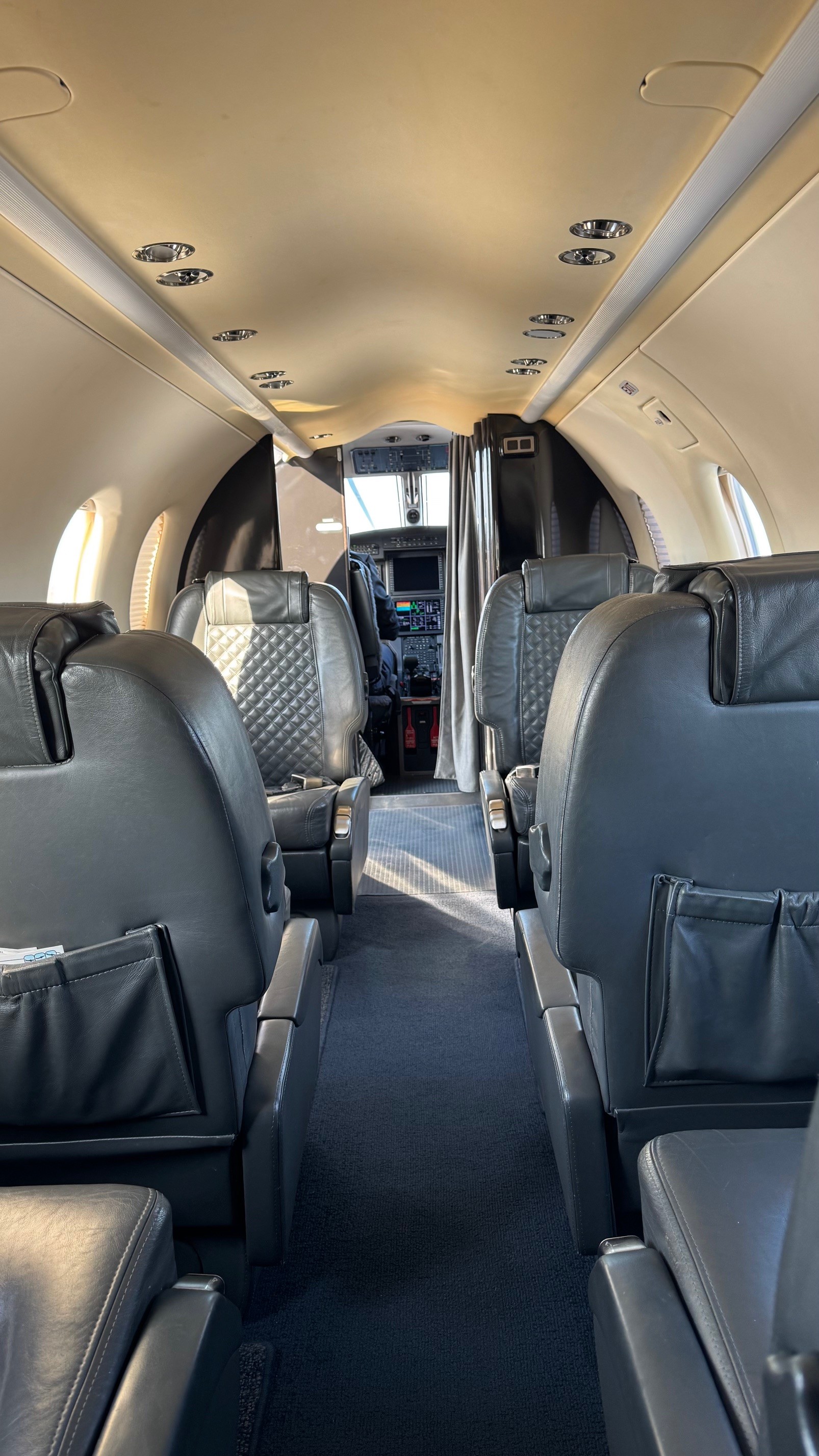

Interior

(8) Eight Passenger Interior

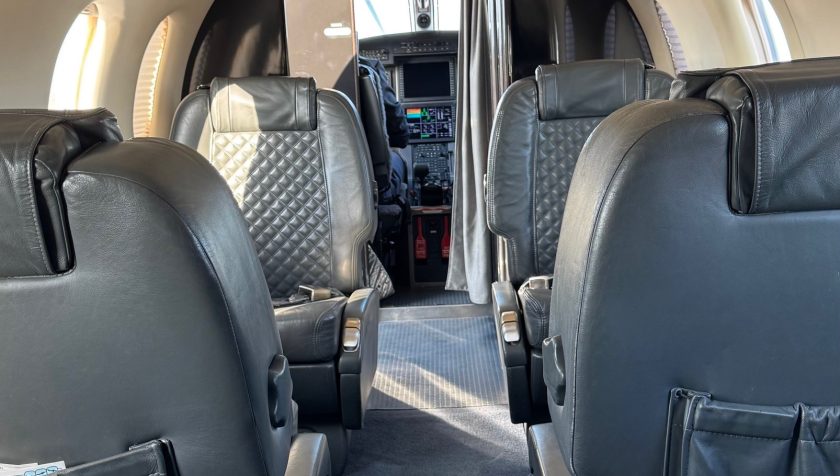

Forward Cabin: Features a fully enclosed lavatory, 4 club seats with two executive bi-folding tables

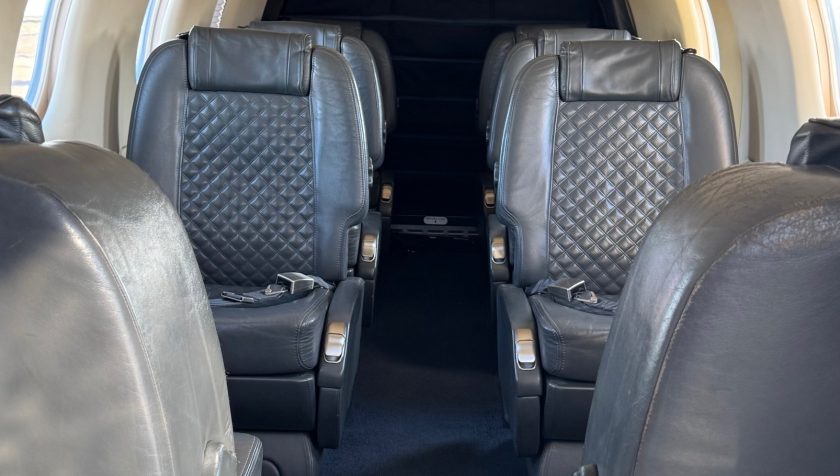

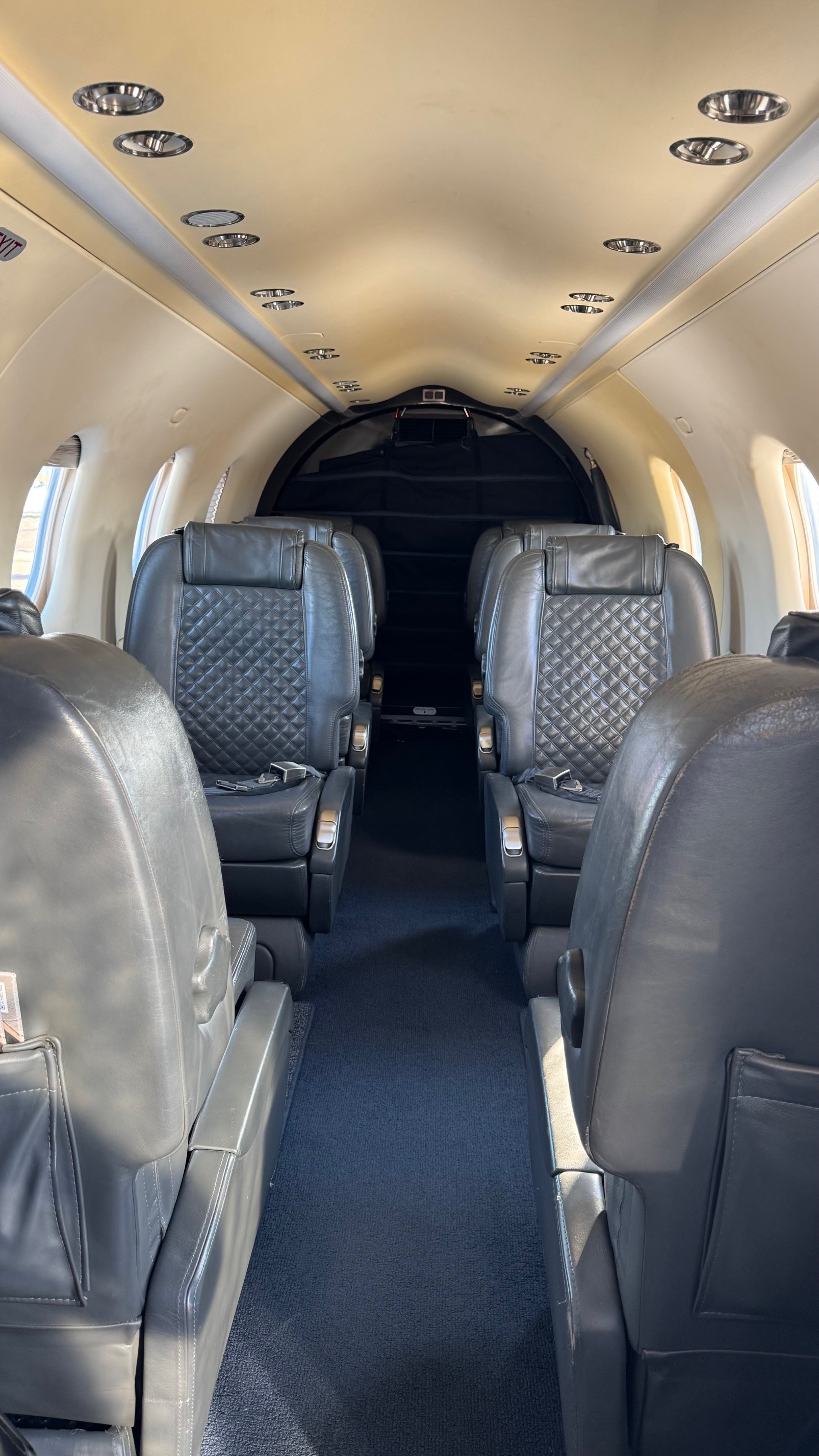

Aft Cabin: 4 club seats with two executive bi-folding tables
Aft Cargo Area: Equipped with a luggage securing net

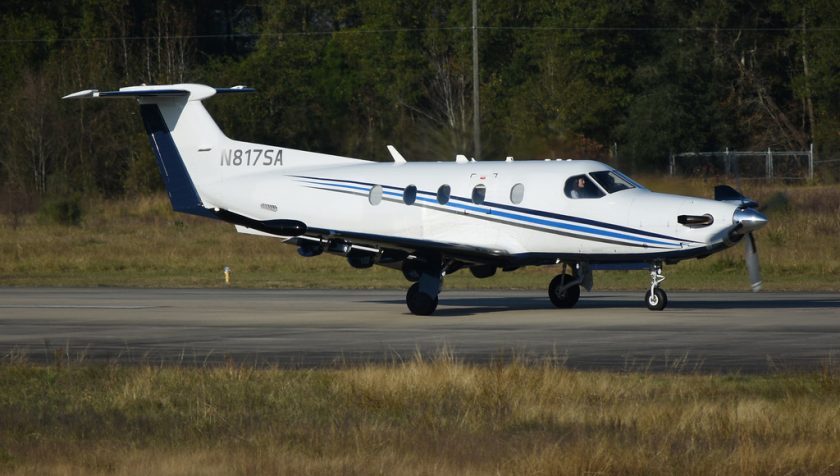

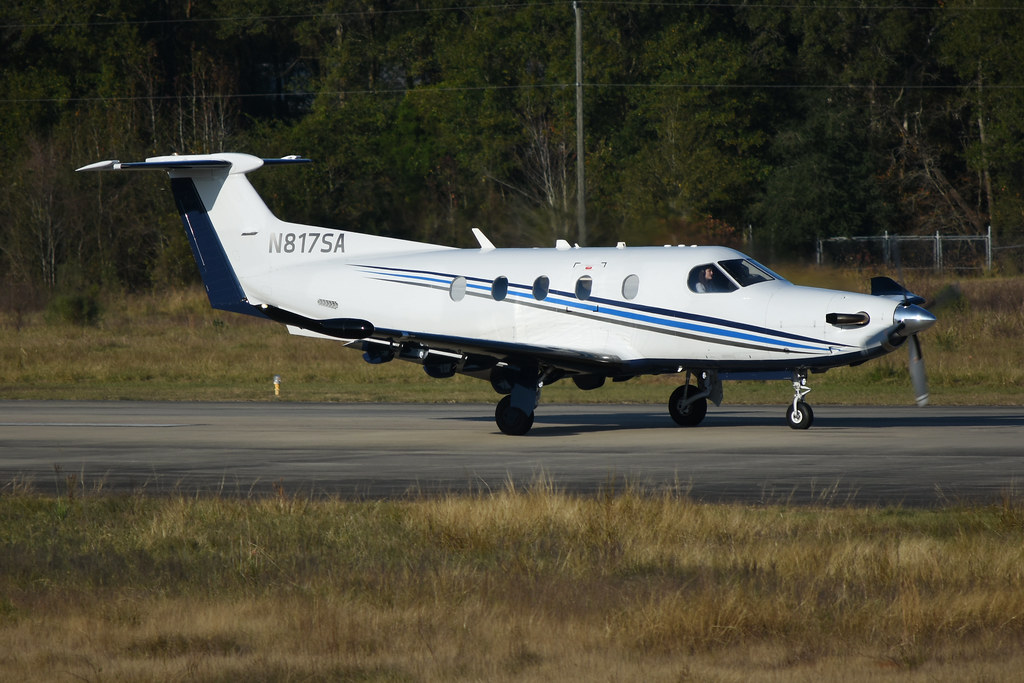

Exterior

Matterhorn White with Silver & Blue Metallic Stripes

Inspection Status

Inpection Notes

INSPECTIONS
300 Hour: LAST COMPLETED 7/9/2025 @ 9166.1; NEXT DUE 7/31/2026 @ 9455.1
600 Hour: LAST COMPLETED 7/9/2025 @ 9166.1; NEXT DUE 9766.1
2400 Hour: LAST COMPLETED 12/13/2024 @ 8863.3; NEXT DUE 12/31/26 @ 11263.3

All Specifications Subject to Verification by the Buyer Upon Inspection. Availability Subject to Prior Lease, Sale, or Withdrawal From Market Without Notice.
